Einstein 1938: The Two Electric Fluids

Reference: Evolution of Physics

This paper presents Chapter II, section 1 from the book THE EVOLUTION OF PHYSICS by A. EINSTEIN and L. INFELD. The contents are from the original publication of this book by Simon and Schuster, New York (1942).

The paragraphs of the original material (in black) are accompanied by brief comments (in color) based on the present understanding.  Feedback on these comments is appreciated.

The heading below is linked to the original materials.

.

The Two Electric Fluids

The following pages contain a dull report of some very simple experiments. The account will be boring not only because the description of experiments is uninteresting in comparison with their actual performance, but also because the meaning of the experiments does not become apparent until theory makes it so. Our purpose is to furnish a striking example of the role of theory in physics.

1. A metal bar is supported on a glass base, and each end of the bar is connected by means of a wire to an electroscope. What is an electroscope? It is a simple apparatus consisting essentially of two leaves of gold foil hanging from the end of a short piece of metal. This is enclosed in a glass jar or flask and the metal is in contact only with non-metallic bodies, called insulators. In addition to the electroscope and metal bar we are equipped with a hard rubber rod and a piece of flannel.

The experiment is performed as follows: we look to see whether the leaves hang close together, for this is their normal position. If by chance they do not, a touch of the finger on the metal rod will bring them together. These preliminary steps being taken, the rubber rod is rubbed vigorously with the flannel and brought into contact with the metal. The leaves separate at once! They remain apart even after the rod is removed.

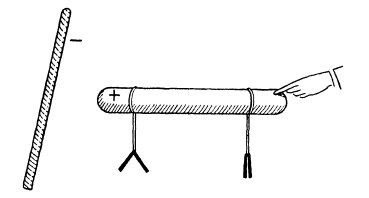

2. We perform another experiment, using the same apparatus as before, again starting with the gold leaves hanging close together. This time we do not bring the rubbed rod into actual contact with the metal, but only near it. Again the leaves separate. But there is a difference! When the rod is taken away without having touched the metal, the leaves immediately fall back to their normal position instead of remaining separated.

3. Let us change the apparatus slightly for a third experiment. Suppose that the metal bar consists of two pieces, joined together. We rub the rubber rod with flannel and again bring it near the metal. The same phenomenon occurs, the leaves separate. But now let us divide the metal rod into its two separate parts and then take away the rubber rod. We notice that in this case the leaves remain apart, instead of falling back to their normal position as in the second experiment.

It is difficult to evince enthusiastic interest in these simple and naive experiments. In the Middle Ages their performer would probably have been condemned; to us they seem both dull and illogical. It would be very difficult to repeat them, after reading the account only once, without becoming confused. Some notion of the theory makes them understandable. We could say more: it is hardly possible to imagine such experiments performed as accidental play, without the pre-existence of more or less definite ideas about their meaning.

We shall now point out the underlying ideas of a very simple and naive theory which explains all the facts described.

There exist two electric fluids, one called positive (+) and the other negative (-). They are somewhat like substance in the sense already explained, in that the amount can be enlarged or diminished, but the total in any isolated system is preserved. There is, however, an essential difference between this case and that of heat, matter or energy. We have two electrical substances. It is impossible here to use the previous analogy of money unless it is somehow generalized. A body is electrically neutral if the positive and negative electric fluids exactly cancel each other. A man has nothing, either because he really has nothing, or because the amount of money put aside in his safe is exactly equal to the sum of his debts. We can compare the debit and credit entries in his ledger to the two kinds of electric fluids.

A property of substance is that its amount can be enlarged or diminished, but the total in any isolated system is preserved. In the case of electricity there exist two electric fluids that neutralize each other.

The next assumption of the theory is that two electric fluids of the same kind repel each other, while two of the opposite kind attract. This can be represented graphically in the following way:

Two electric fluids of the same kind repel each other, while two of the opposite kind attract.

A final theoretical assumption is necessary: There are two kinds of bodies, those in which the fluids can move freely, called conductors, and those in which they cannot, called insulators. As is always true in such cases, this division is not to be taken too seriously. The ideal conductor or insulator is a fiction which can never be realized. Metals, the earth, the human body, are all examples of conductors, although not equally good. Glass, rubber, china, and the like are insulators. Air is only partially an insulator, as everyone who has seen the described experiments knows. It is always a good excuse to ascribe the bad results of electrostatic experiments to the humidity of the air, which increases its conductivity.

There are two kinds of bodies, those in which the fluids can move freely, called conductors, and those in which they cannot, called insulators.

These theoretical assumptions are sufficient to explain the three experiments described. We shall discuss them once more, in the same order as before, but in the light of the theory of electric fluids.

1. The rubber rod, like all other bodies under normal conditions, is electrically neutral. It contains the two fluids, positive and negative, in equal amounts. By rubbing with flannel we separate them. This statement is pure convention, for it is the application of the terminology created by the theory to the description of the process of rubbing. The kind of electricity that the rod has in excess afterwards is called negative, a name which is certainly only a matter of convention. If the experiments had been performed with a glass rod rubbed with cat’s fur we should have had to call the excess positive, to conform with the accepted convention. To proceed with the experiment, we bring electric fluid to the metal conductor by touching it with the rubber. Here it moves freely, spreading over the whole metal including the gold leaves. Since the action of negative on negative is repulsion, the two leaves try to get as far from each other as possible and the result is the observed separation. The metal rests on glass or some other insulator so that the fluid remains on the conductor, as long as the conductivity of the air permits. We understand now why we have to touch the metal before beginning the experiment. In this case the metal, the human body, and the earth form one vast conductor, with the electric fluid so diluted that practically nothing remains on the electroscope.

2. This experiment begins just in the same way as the previous one. But instead of being allowed to touch the metal the rubber is now only brought near it. The two fluids in the conductor, being free to move, are separated, one attracted and the other repelled. They mix again when the rubber rod is removed, as fluids of opposite kinds attract each other.

3. Now we separate the metal into two parts and afterwards remove the rod. In this case the two fluids cannot mix, so that the gold leaves retain an excess of one electric fluid and remain apart.

In the light of this simple theory all the facts mentioned here seem comprehensible. The same theory does more, enabling us to understand not only these, but many other facts in the realm of “electrostatics”. The aim of every theory is to guide us to new facts, suggest new experiments, and lead to the discovery of new phenomena and new laws. An example will make this clear. Imagine a change in the second experiment. Suppose I keep the rubber rod near the metal and at the same time touch the conductor with my finger. What will happen now? Theory answers: the repelled fluid (—) can now make its escape through my body, with the result that only one fluid remains, the positive. Only the leaves of the electroscope near the rubber rod will remain apart. An actual experiment confirms this prediction.

The theory with which we are dealing is certainly naive and inadequate from the point of view of modern physics. Nevertheless it is a good example showing the characteristic features of every physical theory.

The above theory of electricity explains the experimental observations.

There are no eternal theories in science. It always happens that some of the facts predicted by a theory are disproved by experiment. Every theory has its period of gradual development and triumph, after which it may experience a rapid decline. The rise and fall of the substance theory of heat, already discussed here, is one of many possible examples. Others, more profound and important, will be discussed later. Nearly every great advance in science arises from a crisis in the old theory, through an endeavour to find a way out of the difficulties created. We must examine old ideas, old theories, although they belong to the past, for this is the only way to understand the importance of the new ones and the extent of their validity.

Older theories are superseded by later theories based on new observations.

In the first pages of our book we compared the role of an investigator to that of a detective who, after gathering the requisite facts, finds the right solution by pure thinking. In one essential this comparison must be regarded as highly superficial. Both in life and in detective novels the crime is given. The detective must look for letters, fingerprints, bullets, guns, but at least he knows that a murder has been committed. This is not so for a scientist. It should not be difficult to imagine someone who knows absolutely nothing about electricity, since all the ancients lived happily enough without any knowledge of it. Let this man be given metal, gold foil, bottles, hard-rubber rod, flannel, in short, all the material required for performing our three experiments. He may be a very cultured person, but he will probably put wine into the bottles, use the flannel for cleaning, and never once entertain the idea of doing the things we have described. For the detective the crime is given, the problem formulated: who killed Cock Robin? The scientist must, at least in part, commit his own crime, as well as carry out the investigation. Moreover, his task is not to explain just one case, but all phenomena which have happened or may still happen.

Scientific investigations proceed on the basis of pure curiosity.

In the introduction of the concept of fluids we see the influence of those mechanical ideas which attempt to explain everything by substances and simple forces acting between them. To see whether the mechanical point of view can be applied to the description of electrical phenomena, we must consider the following problem. Two small spheres are given, both with an electric charge, that is, both carrying an excess of one electric fluid. We know that the spheres will either attract or repel each other. But does the force depend only on the distance, and if so, how? The simplest guess seems to be that this force depends on the distance in the same way as gravitational force, which diminishes, say, to one-ninth of its former strength if the distance is made three times as great. The experiments performed by Coulomb showed that this law is really valid. A hundred years after Newton discovered the law of gravitation, Coulomb found a similar dependence of electrical force on distance. The two major differences between Newton’s law and Coulomb’s law are: gravitational attraction is always present, while electric forces exist only if the bodies possess electric charges. In the gravitational case there is only attraction, but electric forces may either attract or repel.

There is similarity between the laws that govern gravitational and electrical force. Gravitational attraction is always present, while electric forces exist only if the bodies possess electric charges. In the gravitational case there is only attraction, but electric forces may either attract or repel.

There arises here the same question which we considered in connection with heat. Are the electrical fluids weightless substances or not? In other words, is the weight of a piece of metal the same whether neutral or charged? Our scales show no difference. We conclude that the electric fluids are also members of the family of weightless substances.

The electric fluids are also members of the family of weightless substances.

Further progress in the theory of electricity requires the introduction of two new concepts. Again we shall avoid rigorous definitions, using instead analogies with concepts already familiar. We remember how essential it was for an understanding of the phenomena of heat to distinguish between heat itself and temperature. It is equally important here to distinguish between electric potential and electric charge. The difference between the two concepts is made clear by the analogy:

Two conductors, for example two spheres of different size, may have the same electric charge, that is the same excess of one electric fluid, but the potential will be different in the two cases, being higher for the smaller and lower for the larger sphere. The electric fluid will have greater density and thus be more compressed on the small conductor. Since the repulsive forces must increase with the density, the tendency of the charge to escape will be greater in the case of the smaller sphere than in that of the larger. This tendency of charge to escape from a conductor is a direct measure of its potentials. In order to show clearly the difference between charge and potential we shall formulate a few sentences describing the behaviour of heated bodies, and the corresponding sentences concerning charged conductors.

But this analogy must not be pushed too far. An example shows the differences as well as the similarities. If a hot body is brought into contact with a cold one, the heat flows from the hotter to the colder. On the other hand, suppose that we have two insulated conductors having equal but opposite charges, one positive and the other negative. The two are at different potentials. By convention we regard the potential corresponding to a negative charge as lower than that corresponding to a positive charge. If the two conductors are brought together or connected by a wire, it follows from the theory of electric fluids that they will show no charge and thus no difference of electric potential at all. We must imagine a “flow” of electric charge from one conductor to the other during the short time in which the potential difference is equalized. But how? Does the positive fluid flow to the negative body, or the negative fluid to the positive body?

Hot and cold temperatures can be put on the same scale, but this is not so with positive and negative electricity.

In the material presented here we have no basis for deciding between these two alternatives. We can assume either of the two possibilities, or that the flow is simultaneous in both directions. It is only a matter of adopting a convention, and no significance can be attached to the choice, for we know no method of deciding the question experimentally. Further development leading to a much more profound theory of electricity gave an answer to this problem, which is quite meaningless when formulated in terms of the simple and primitive theory of electric fluids. Here we shall simply adopt the following mode of expression. The electric fluid flows from the conductor having the higher potential to that having the lower. In the case of our two conductors, the electricity thus flows from positive to negative. This expression is only a matter of convention and is at this point quite arbitrary. The whole difficulty indicates that the analogy between heat and electricity is by no means complete.

The positive and negative potentials are arbitrarily assigned under the two fluids theory.

We have seen the possibility of adapting the mechanical view to a description of the elementary facts of electrostatics. The same is possible in the case of magnetic phenomena.

.

FINAL COMMENTS

The electric charges reside in the interface between particle and void. In this interface we have a very high gradient from substance to no substance. “Substance” is positive; “no substance” is negative. Together there is no charge; but the moment the interface between particle and void is widened opposite charges appear.

The gravitational attraction exists between two bodies separated by void. Gravitational force is always present because substance separated by void is always present.

.
