## Einstein 1920: Experiment of Fizeau

##### Reference: Einstein’s 1920 Book

This paper presents Part 1, Chapter 13 from the book RELATIVITY: THE SPECIAL AND GENERAL THEORY by A. EINSTEIN. The contents are from the original publication of this book by Henry Holt and Company, New York (1920).

The paragraphs of the original material (in black) are accompanied by brief comments (in color) based on the present understanding.  Feedback on these comments is appreciated.

.

## Theorem of the Addition of Velocities. The Experiment of Fizeau

Now in practice we can move clocks and measuring-rods only with velocities that are small compared with the velocity of light; hence we shall hardly be able to compare the results of the previous section directly with the reality. But, on the other hand, these results must strike you as being very singular, and for that reason I shall now draw another conclusion from the theory, one which can easily be derived from the foregoing considerations, and which has been most elegantly confirmed by experiment.

Velocities in the material domain are small compared with the velocity of light because of high inertia. High velocities exist in the radiation domain only where the inertia is much lower. Velocities closer to the velocity of light cannot be expected in the material domain.

In Section 6 we derived the theorem of the addition of velocities in one direction in the form which also results from the hypotheses of classical mechanics. This theorem can also be deduced readily from the Galilei transformation (Section 11). In place of the man walking inside the carriage, we introduce a point moving relatively to the co-ordinate system K’in accordance with the equation

x’ = wt’.

By means of the first and fourth equations of the Galilei transformation we can express x’and t’in terms of xand t, and we then obtain

x = (v + w)t.

This equation expresses nothing else than the law of motion of the point with reference to the system K (of the man with reference to the embankment). We denote this velocity by the symbol W, and we then obtain, as in Section 6,

W = v + w…………………………………. (A)

But we can carry out this consideration just as well on the basis of the theory of relativity. In the equation

x’ = wt’

we must then express x’ and t’ in terms of xand t, making use of the first and fourth equations of the Lorentz transformation. Instead of the equation (A) we then obtain the equation

Equation (B) is valid only when c is infinite or very large compared to the material velocity v that is being added to a radiation velocity w.

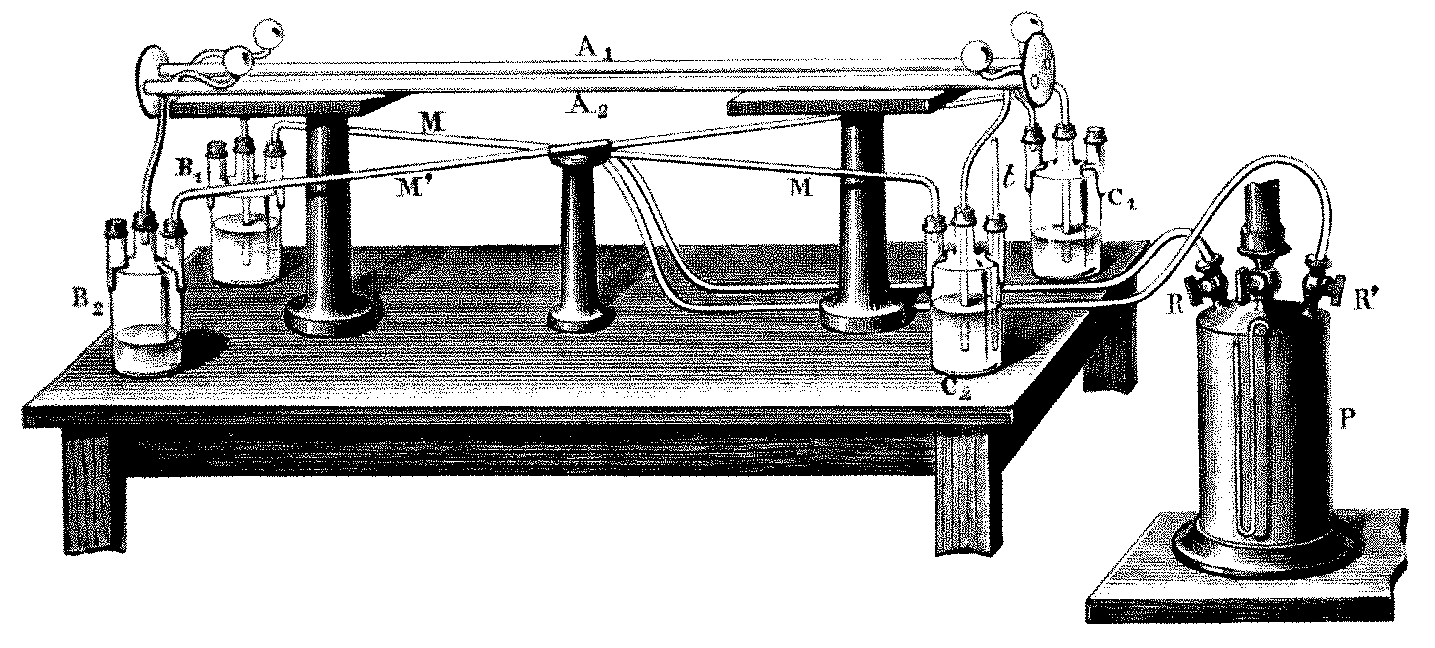

which corresponds to the theorem of addition for velocities in one direction according to the theory of relativity. The question now arises as to which of these two theorems is the better in accord with experience. On this point we are enlightened by a most important experiment which the brilliant physicist Fizeau performed more than half a century ago, and which has been repeated since then by some of the best experimental physicists, so that there can be no doubt about its result. The experiment is concerned with the following question. Light travels in a motionless liquid with a particular velocity w. How quickly does it travel in the direction of the arrow in the tube T (see the accompanying diagram, Fig. 3) when the liquid above mentioned is flowing through the tube with a velocity v?

In accordance with the principle of relativity we shall certainly have to take for granted that the propagation of light always takes place with the same velocity w with respect to the liquid, whether the latter is in motion with reference to other bodies or not. The velocity of light relative to the liquid and the velocity of the latter relative to the tube are thus known, and we require the velocity of light relative to the tube.

It is clear that we have the problem of Section 6 again before us. The tube plays the part of the railway embankment or of the co-ordinate system K, the liquid plays the part of the carriage or of the co-ordinate system K’, and finally, the light plays the part of the man walking along the carriage, or of the moving point in the present section. If we denote the velocity of the light relative to the tube by W, then this is given by the equation (A) or (B), according as the Galilei transformation or the Lorentz transformation corresponds to the facts. Experiment 1 decides in favour of equation (B) derived from the theory of relativity, and the agreement is, indeed, very exact. According to recent and most excellent measurements by Zeeman, the influence of the velocity of flow v on the propagation of light is represented by formula (B) to within one per cent.

Nevertheless we must now draw attention to the fact that a theory of this phenomenon was given by H. A. Lorentz long before the statement of the theory of relativity. This theory was of a purely electrodynamical nature, and was obtained by the use of particular hypotheses as to the electromagnetic structure of matter. This circumstance, however, does not in the least diminish the conclusiveness of the experiment as a crucial test in favour of the theory of relativity, for the electrodynamics of Maxwell-Lorentz, on which the original theory was based, in no way opposes the theory of relativity. Rather has the latter been developed from electrodynamics as an astoundingly simple combination and generalisation of the hypotheses, formerly independent of each other, on which electrodynamics was built.

According to the principle of relativity the general laws are consistent with changes in uniform motion and inertia. This applies to the laws of electrodynamics too. Addition of velocities is valid when the inertia of the systems is of the same order of magnitude (both in the material domain). Lorentz transformation is valid when the inertia of the systems is many orders of magnitude apart (as in material and field domains).

.
